Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart, 100 points. SWR chart at fixed HAM bands by IARU Regions, 100 points, Multé mode – to check your multiband antenna promptly, Cable tools (Velocity factor & Cable length measurer, Stub tuner, Cable loss chart, Cable impedance chart), TDR
- Connector: N-type.
- Output signal shape: square, 0.1 to 600 MHz.
- Output power: -10 dBm (at 50 Ohm load).
- One 3.7V Li-Ion battery, type 18650
- When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources
- 220×220 color TFT display
- 2×3 keys on the water-proof keypad
- English menus and help screens
- USB connection to a personal computer
Bluetooth: v.4.2 BLE Single-mode, Class B
Dimensions: 185 mm x 40 mm x 33 mm (7,3 in x 1,6 in x 1,3 in)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 185 g (6,5 Oz) with battery
Warranty: 2 years

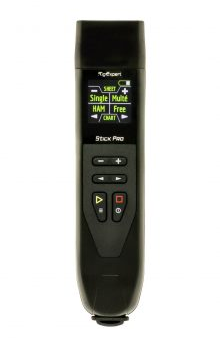

RigExpert Stick Pro is made in Ukraine.
*All specifications are subject to change without notice or obligation.
